Thermoforming differs from injection molding because the starting material is usually a prepared plastic sheet or roll rather than plastic pellets injected directly into a mold. The technique can produce containers, trays, packaging components, automotive parts, equipment housings, medical packaging, and many other products.

The technology is used across packaging, food processing, healthcare, electronics, transportation, consumer products, and industrial manufacturing.

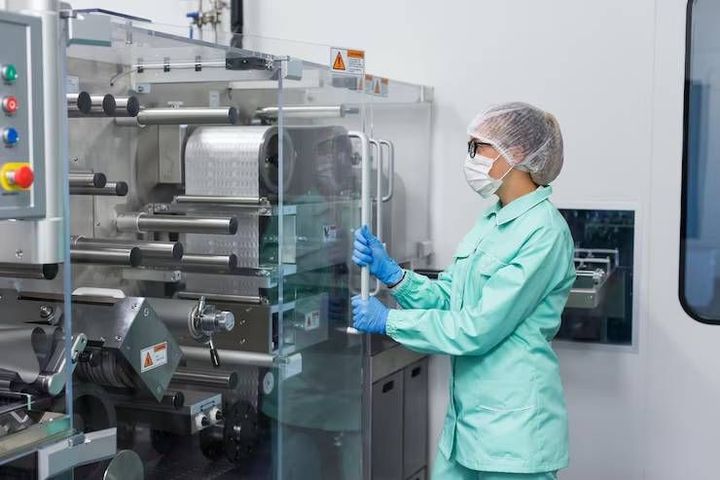

How Thermoforming Works

A typical thermoforming line follows several connected stages.

• Material feeding: Plastic sheet or roll stock enters the machine.

• Heating: Heating elements raise the sheet temperature to a suitable forming range.

• Forming: The softened sheet is positioned over a mold and shaped using vacuum, compressed air, mechanical movement, or a combination of these methods.

• Cooling: The formed material is cooled while retaining the mold shape.

• Trimming: Excess material around the formed part is removed.

• Stacking: Finished parts can be automatically separated and stacked.

• Scrap handling: Remaining sheet material can be collected for appropriate recovery or recycling processes.

The exact sequence varies according to machine design, plastic type, product geometry, production requirements, and forming method.

Main Thermoforming Methods

Vacuum forming uses a vacuum to draw the heated plastic sheet against the mold surface. It is widely associated with trays, covers, containers, displays, and relatively simple shapes.

Pressure forming adds compressed air to create greater pressure against the mold. This can produce more detailed surfaces and sharper features than conventional vacuum forming.

Twin-sheet forming heats two plastic sheets separately and forms them against molds before joining them together. It can create hollow structures and parts with internal spaces.

Plug-assisted forming uses a mechanical plug to push the heated sheet into the mold before vacuum or air pressure completes the shaping process. This can improve material distribution in deeper products.

Importance

Packaging Production

One of the major applications of thermoforming is plastic packaging. Trays, food containers, blister-style packages, cups, lids, and protective packaging can be produced using different thermoforming configurations.

The process can be adapted to different product dimensions and material thicknesses, making it suitable for both relatively small components and high-volume packaging lines.

Manufacturing Complex Shapes

Thermoforming can create curved surfaces, recesses, ribs, walls, openings, and other geometric features. The final design depends on the mold, sheet material, forming temperature, pressure conditions, and cooling process.

Material Selection

Common thermoplastics used in thermoforming include:

• PET: Used extensively in packaging and food-related applications.

• PVC: Used in selected packaging and industrial applications.

• PS: Used for containers, trays, and other formed products.

• PP: Used where particular chemical and thermal properties are required.

• ABS: Used for selected durable and appearance-focused components.

• PE: Used for particular packaging and industrial products.

• PLA and other bio-based materials: Used in selected applications where material characteristics and regulatory requirements permit.

The appropriate material depends on temperature resistance, flexibility, strength, transparency, chemical compatibility, intended use, and applicable regulations.

Key Machine Components

Production Control

Modern machines can use programmable controls to manage heating zones, sheet movement, forming pressure, vacuum levels, timing, cooling, and other parameters.

Accurate control of these variables can help maintain consistent product dimensions. Sensors and monitoring systems can also identify changes in temperature, pressure, position, or machine operation.

Recent Updates

Greater Automation

Thermoforming lines increasingly combine automated sheet handling, forming, trimming, stacking, inspection, and material recovery.

Robotic handling can move formed products between stations or organize finished parts. Automated controls can also coordinate multiple machine stages, reducing the amount of manual intervention required during normal production.

Digital Machine Controls

Modern control systems can provide touch-screen interfaces, recipe management, alarm monitoring, temperature-zone control, production data, and equipment diagnostics.

Some systems connect machine information with broader manufacturing software. This can provide operators and engineers with data concerning machine conditions and production patterns.

Energy Management

Heating is one of the major energy-related stages in thermoforming because plastic sheets must reach an appropriate forming temperature.

Machine designers are therefore developing more controlled heating zones, improved insulation, infrared heating arrangements, and electronic controls. These approaches can help regulate heat distribution across the sheet.

Energy performance depends on the material, machine configuration, heating technology, product geometry, production speed, and operating conditions.

Machine Vision and Automated Inspection

Cameras and machine-vision systems can inspect formed products for selected dimensional, surface, shape, or appearance characteristics.

Automated inspection can be integrated after forming or trimming. The information can also be used to identify process changes that may require operator attention.

Material Recovery

Thermoforming produces trim scrap because the finished product is cut from a larger sheet. Manufacturers increasingly consider material recovery systems that collect suitable scrap for controlled recycling or reprocessing.

The ability to recycle a particular material depends on polymer type, contamination, additives, multilayer construction, collection systems, and the intended recycling route.

Advanced Forming Control

Pressure forming, plug assistance, improved heating control, and more precise motion systems are enabling manufacturers to produce increasingly detailed components.

These technologies can help control material distribution, particularly in products with deep draws or complex geometries.

Connected Manufacturing

Industrial communication networks allow thermoforming equipment to exchange information with other production systems.

Connected equipment can provide information about operating conditions, production counts, alarms, energy data, and selected machine parameters. Such connectivity can support broader factory monitoring and data analysis.

Laws or Policies

International Machinery Safety

Thermoforming machines are industrial machinery and can be subject to machinery-safety requirements in the regions where they are manufactured, installed, or operated.

ISO/TC 270 develops standards covering plastics and rubber machinery, including safety requirements for machine design, construction, and use. Its current work program also considers machinery classification and energy-consumption measurement.

Because thermoforming lines contain heaters, moving mechanisms, cutting equipment, electrical systems, pneumatic components, and other hazards, the applicable safety framework depends on the machine design and jurisdiction.

European Union Machinery Rules

The European Union's Regulation (EU) 2023/1230 establishes health and safety requirements for machinery and related products. The regulation applies from 20 January 2027, replacing the earlier EU Machinery Directive framework for its covered scope.

Manufacturers placing covered machinery on the EU market must address applicable essential health and safety requirements and conformity-assessment obligations.

United States Workplace Safety

In the United States, OSHA provides specific guidance for thermoforming machinery under its plastics-machinery machine-guarding resources. The guidance identifies hazards involving moving parts, high temperatures, electrical equipment, forming stations, trim stations, rollers, and other machine areas.

OSHA also emphasizes appropriate machine guarding and energy-control procedures for maintenance and other hazardous activities.

Food-Contact Packaging

When thermoformed products are intended for direct food contact, requirements can extend beyond machinery safety to the material used in the finished package.

In the United States, the FDA explains that substances reasonably expected to migrate from food-contact materials must have an appropriate regulatory basis, such as applicable regulations, an effective food-contact notification, or another recognized authorization route.

Similar food-contact frameworks exist in other regions, so manufacturers producing food packaging need to consider the destination market and material composition.

United Kingdom Machinery Requirements

The United Kingdom maintains its own machinery framework through the Supply of Machinery (Safety) Regulations 2008. The UK's Health and Safety Executive explains that manufacturers need to address applicable essential health and safety requirements when designing machinery.

Requirements can differ between jurisdictions, so a machine intended for international markets may require different documentation, conformity procedures, labeling, or technical assessments.

Tools and Resources

Temperature Monitoring

Thermocouples, infrared sensors, and other temperature-measurement equipment can monitor heating zones and plastic-sheet temperatures.

Accurate temperature information is important because different thermoplastics require different forming conditions.

Vacuum and Pressure Measurement

Vacuum gauges, pressure sensors, and digital monitoring systems can help operators observe forming conditions.

These measurements can help identify changes in the forming process and support troubleshooting when product quality changes.

Mold Design Software

Computer-aided design software can be used to create mold geometry and product models before tooling is manufactured.

Simulation and design tools can also help engineers examine wall thickness, draw depth, draft angles, cooling arrangements, and other design factors.

Machine Vision

Machine-vision systems can inspect selected characteristics such as shape, dimensions, surface appearance, labels, and defects.

The inspection criteria depend on the product and application.

Production Monitoring

Manufacturing execution systems and industrial monitoring platforms can collect information from connected machinery. Data may include production counts, machine states, alarms, temperatures, and selected process parameters.

Recycling and Material Identification

Material-identification systems can help distinguish different plastic types. Proper separation is important because mixing incompatible polymers can affect recycling processes.

For thermoforming operations, material recovery planning can consider trim scrap, rejected parts, multilayer structures, additives, and contamination.

FAQs

What are Thermoforming Machines?

Thermoforming Machines are industrial machines that heat thermoplastic sheets or films and shape them over molds using vacuum, air pressure, mechanical assistance, or combinations of these methods.

How do Thermoforming Machines work?

Thermoforming Machines generally feed plastic sheet into a heating section, soften it, form it against a mold, cool the shape, trim excess material, and handle the finished product.

What materials are used in thermoforming?

Common materials include PET, PVC, PS, PP, ABS, PE, and selected bio-based thermoplastics. Material selection depends on the product's mechanical, thermal, chemical, appearance, and regulatory requirements.

What products are made with Thermoforming Machines?

Applications include food trays, containers, cups, lids, protective packaging, medical packaging components, automotive interior parts, equipment covers, electronics housings, and various industrial components.

What is the difference between vacuum forming and pressure forming?

Vacuum forming uses reduced air pressure to pull heated plastic against a mold. Pressure forming adds compressed air to apply greater pressure, which can help create more detailed shapes and surface features.

Conclusion

Thermoforming Machines use controlled heating, molding, pressure, cooling, and trimming to convert thermoplastic sheets into useful products. Their applications range from packaging and food containers to medical, automotive, electronic, and industrial components. Current developments include automation, digital controls, machine vision, energy-management technologies, connected production systems, and material-recovery approaches. Because thermoforming equipment operates across global markets, manufacturers and operators also need to consider regional machinery-safety rules, material regulations, and application-specific requirements.
