Many fabrication processes require precise control of pressure, gases, temperature, and contamination because even small particles or unwanted reactions can affect device structures.

Vacuum systems can be found in processes such as physical vapor deposition, chemical vapor deposition, etching, ion implantation, surface treatment, and other semiconductor manufacturing stages. The equipment combines vacuum chambers, pumps, valves, gauges, gas systems, controls, and filtration technologies.

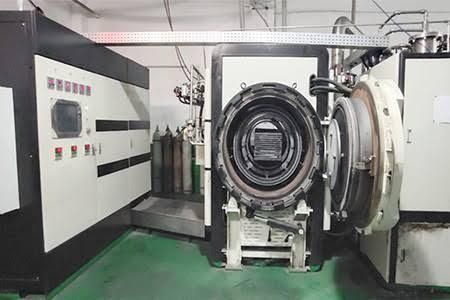

What Is Semiconductor Vacuum Equipment?

Semiconductor vacuum equipment consists of machines and components used to create, measure, control, and maintain vacuum conditions during semiconductor processing.

A typical system may include:

• Vacuum chambers
• Vacuum pumps
• Pressure gauges
• Vacuum valves
• Gas delivery systems
• Exhaust systems
• Filters and traps
• Pressure controllers
• Heating and cooling systems
• Process monitoring controls

The required vacuum level varies according to the process. Some applications operate at relatively low vacuum levels, while processes involving thin-film deposition or plasma treatment can require much deeper vacuum conditions.

Why Vacuum Is Important in Semiconductor Manufacturing

Vacuum environments help reduce the presence of atmospheric gases and contaminants around wafers and other materials. Controlling the process environment can improve the consistency of chemical and physical reactions.

Vacuum conditions can help with:

• Reducing unwanted gas interactions
• Controlling deposition environments
• Supporting plasma generation
• Limiting contamination
• Managing process pressure
• Improving repeatability
• Creating controlled environments for sensitive materials

Different semiconductor processes require different combinations of pressure, gas composition, temperature, and plasma conditions.

How Semiconductor Vacuum Equipment Works

1. Chamber Preparation

A semiconductor wafer or substrate is placed inside a controlled process chamber. The chamber is sealed to isolate the processing area from the surrounding atmosphere.

2. Initial Evacuation

Vacuum pumps remove air and other gases from the chamber. Depending on the required pressure range, multiple types of pumps may be used in sequence.

3. Pressure Control

Vacuum gauges measure chamber pressure while valves and controllers regulate gas flow and pumping conditions.

4. Process Gas Introduction

Specific gases can be introduced into the chamber at controlled flow rates. These gases may participate in deposition, etching, cleaning, or plasma-based processes.

5. Process Operation

The wafer undergoes the required manufacturing step while the vacuum system maintains the specified pressure and environmental conditions.

6. Exhaust and Recovery

Process gases and reaction products are removed through the exhaust system. Filters, traps, scrubbers, or other treatment equipment may be used depending on the process chemistry.

Types of Semiconductor Vacuum Pumps

Dry Vacuum Pumps

Dry pumps operate without introducing lubricating oil into the process gas stream. They are widely used in semiconductor manufacturing because they can reduce the risk of oil contamination.

Different designs include screw, scroll, claw, and other dry-pump configurations.

Rotary Vane Pumps

Rotary vane pumps use rotating vanes to compress and remove gases. They can be used for certain rough-vacuum applications and as backing pumps.

Roots Pumps

Roots pumps use rotating lobes to move large volumes of gas. They are often combined with other pumps to increase pumping capacity across particular pressure ranges.

Turbomolecular Pumps

Turbomolecular pumps use rapidly rotating blades to move gas molecules toward the exhaust side. They are used when lower pressures are required.

Cryogenic Pumps

Cryogenic pumps use extremely low temperatures to capture gases on cold surfaces. They can provide high pumping speeds for certain vacuum applications.

Main Components of Semiconductor Vacuum Systems

Vacuum Measurement

Accurate pressure measurement is important because semiconductor processes can operate within narrow pressure ranges.

Different gauges are suited to different vacuum levels. Common technologies include:

• Capacitance manometers
• Pirani gauges
• Cold cathode gauges
• Ionization gauges
• Combination vacuum gauges

The appropriate gauge depends on the pressure range, gas composition, process conditions, and required measurement accuracy.

Vacuum Valves and Control Systems

Vacuum valves regulate the movement of gases and isolate individual sections of the system. Examples include gate valves, butterfly valves, isolation valves, throttle valves, and angle valves.

Throttle valves can be used with pressure controllers to adjust conductance between the process chamber and pumping system. This allows the chamber pressure to be controlled while process gases continue to flow.

Automated control systems can coordinate pumps, valves, gas delivery equipment, temperature controls, and pressure sensors.

Applications of Semiconductor Vacuum Equipment

Physical Vapor Deposition

PVD processes use vacuum environments to deposit thin material layers onto wafers and other substrates. Vacuum conditions help control the deposition environment and reduce unwanted interactions with atmospheric gases.

Chemical Vapor Deposition

CVD processes introduce reactive gases into a controlled chamber, where chemical reactions create thin films on substrate surfaces. Vacuum equipment helps establish the required pressure and gas-flow conditions.

Plasma Etching

Plasma etching uses ionized gases to selectively remove material from wafer surfaces. Vacuum systems help establish and maintain the pressure required for plasma formation and process control.

Ion Implantation

Ion implantation introduces selected ions into semiconductor materials to modify their electrical properties. Vacuum environments help control the ion beam path and reduce interactions with atmospheric gases.

Wafer Cleaning

Certain wafer cleaning and surface-treatment processes use controlled vacuum environments to remove contaminants or modify surface characteristics.

Thin-Film Processing

Various semiconductor thin-film processes depend on controlled vacuum conditions to achieve specific layer structures, thicknesses, and material properties.

Factors Affecting Vacuum System Selection

Required Pressure Range

The process determines the vacuum level that must be achieved and maintained. Pump selection should match the required pressure range and gas load.

Gas Composition

Reactive, corrosive, toxic, or condensable gases can affect pump and material selection. System components must be compatible with the process chemistry.

Pumping Speed

Pumping speed determines how quickly gases can be removed under specified conditions. The required capacity depends on chamber volume, gas flow, leakage rates, and process conditions.

Contamination Control

Semiconductor manufacturing requires careful control of particles, hydrocarbons, moisture, and other contaminants. Equipment materials and pump technologies should be selected accordingly.

Temperature

Process and exhaust temperatures can influence gas behavior and condensation. Heating or cooling may be necessary for certain components.

Maintenance of Semiconductor Vacuum Equipment

Vacuum equipment requires regular inspection and maintenance to maintain stable operation.

Pump condition should be monitored for changes in vibration, temperature, power consumption, and pumping performance. Vacuum lines and chamber seals should be checked for leaks or contamination.

Filters and traps may require periodic replacement or cleaning. Vacuum gauges and pressure-control instruments should also be checked and calibrated according to applicable procedures.

Chamber cleaning is particularly important because deposited process materials can accumulate on internal surfaces and affect subsequent processing.

Leak Detection and Vacuum Integrity

Leaks can prevent a system from reaching its intended pressure or introduce unwanted contaminants. Vacuum leak detection can use techniques such as helium leak testing or pressure-rise testing.

The appropriate method depends on the system design and required sensitivity. Regular leak checks can help identify degraded seals, damaged components, or connection problems.

Safety Considerations

Semiconductor vacuum systems can involve high voltage, high temperatures, pressurized gases, reactive chemicals, moving pump components, and potentially hazardous exhaust gases.

Appropriate safeguards may include:

• Gas detection systems
• Exhaust treatment
• Pressure relief mechanisms
• Electrical protection
• Interlocks
• Proper grounding
• Ventilation
• Lockout and isolation procedures
• Appropriate personal protective equipment

Maintenance personnel should follow equipment documentation, facility procedures, and applicable safety requirements.

FAQs

What is semiconductor vacuum equipment used for?

Semiconductor vacuum equipment creates and maintains controlled low-pressure environments used during processes such as deposition, etching, ion implantation, cleaning, and thin-film processing.

What types of vacuum pumps are used in semiconductor manufacturing?

Common technologies include dry pumps, rotary vane pumps, Roots pumps, turbomolecular pumps, and cryogenic pumps. The appropriate combination depends on the process and required pressure range.

Why are dry vacuum pumps used in semiconductor processing?

Dry pumps can reduce the risk of oil contamination because they do not require oil lubrication in the process gas path. This can be useful for processes where contamination control is important.

How is vacuum pressure measured?

Vacuum pressure can be measured using instruments such as capacitance manometers, Pirani gauges, cold cathode gauges, and ionization gauges. Selection depends on the pressure range and process conditions.

How can semiconductor vacuum equipment be maintained?

Maintenance can include pump inspection, leak testing, chamber cleaning, filter and trap maintenance, gauge verification, seal inspection, and monitoring of operating parameters.

Conclusion

Semiconductor vacuum equipment provides controlled environments for many stages of wafer and semiconductor manufacturing. Vacuum chambers, pumps, valves, gauges, gas delivery systems, exhaust equipment, and automated controls work together to maintain required pressure and process conditions.

Equipment selection depends on pressure requirements, gas chemistry, pumping speed, contamination limits, temperature, and process characteristics. Regular maintenance, leak detection, chamber cleaning, monitoring, and appropriate safety procedures are important for maintaining stable vacuum performance.
